In industrial piping systems, precision and efficiency are crucial. Every connection, joint, and fitting must work seamlessly to ensure smooth fluid transport across the network. One key component that simplifies installation and improves project efficiency is the piping spool. These preassembled sections of piping are designed, fabricated, and tested in controlled environments before being transported to the site for installation.
In this blog, we’ll explore what piping spools are, how they are fabricated, their advantages, and their wide range of applications across industries.
What is a Piping Spool?

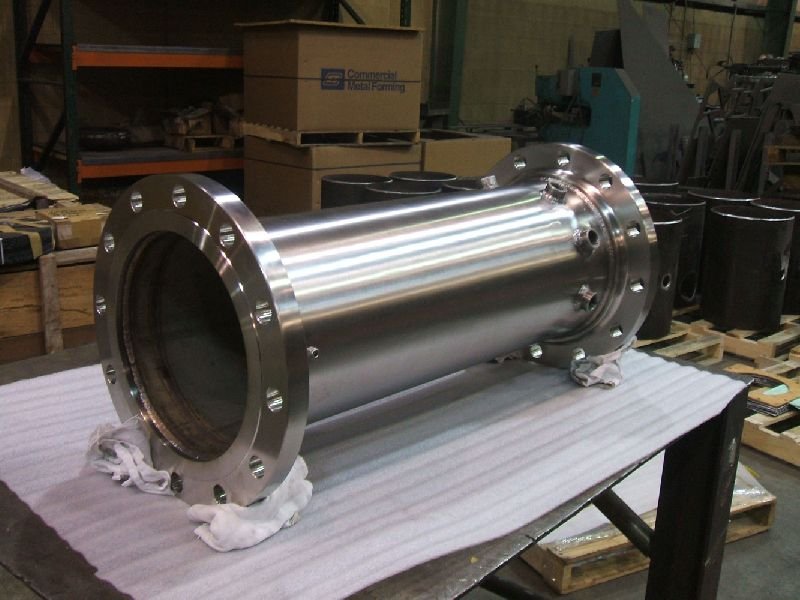

A piping spool is a prefabricated section of a piping system that includes pipes, flanges, fittings, elbows, and other components welded together in the workshop. These spools are fabricated according to detailed design drawings that specify the dimensions, material grade, and weld joints required.
Once fabricated, the spools are shipped to the site, where they are assembled with other spools to create the complete piping system. This approach minimizes on-site welding and fitting work, saving both time and labor.
Focus Keywords:
piping spool, prefabricated piping spool, piping spool fabrication, piping spool manufacturer
Components of a Piping Spool
A typical piping spool assembly consists of several parts that work together to form a functional section of the pipeline. The main components include:
-
Pipes:
The main element of the spool, pipes are made from materials like carbon steel, stainless steel, or alloy steel, depending on the fluid and operating conditions. -
Flanges:
Flanges connect the piping spool to other sections of the piping system. They allow easy assembly and disassembly for maintenance or replacement. -
Fittings:
Fittings such as elbows, tees, reducers, and couplings help in changing the direction or diameter of the piping. -
Welds:
Weld joints hold the entire spool together. These welds are inspected using non-destructive testing (NDT) methods to ensure quality and strength. -
Gaskets and Bolts:
Gaskets ensure leak-proof connections, while bolts provide the mechanical strength needed for flange joints.
Piping Spool Fabrication Process
Piping spool fabrication is a detailed process that requires accuracy, skilled labor, and adherence to international standards. Let’s look at the step-by-step process involved in making a piping spool.
1. Design and Engineering
The process begins with engineering drawings based on the project’s piping and instrumentation diagram (P&ID). These drawings detail the pipe lengths, diameters, weld locations, flange orientations, and other critical dimensions.
2. Material Procurement
Based on the design, materials are sourced according to specifications like ASME, ASTM, or API standards. Common materials include stainless steel, carbon steel, duplex steel, and nickel alloys.
3. Cutting and Preparation
Pipes and fittings are cut to the required dimensions using advanced cutting tools. The edges are then beveled to prepare for welding.
4. Fit-Up and Welding
In this stage, components are aligned and tack-welded. Skilled welders perform the welding using techniques such as TIG, MIG, or SMAW depending on the material.
5. Inspection and Testing
All welded joints undergo thorough inspection through NDT methods such as radiography, ultrasonic testing, and dye penetrant testing to detect cracks or defects.
6. Surface Treatment
The spools are cleaned, pickled, and sometimes coated with anti-corrosive materials or painted for added durability.
7. Assembly and Marking
Once fabrication is complete, each piping spool is tagged with an identification number for easy installation at the site. This ensures correct positioning according to the layout.
8. Delivery to Site
The finished spools are carefully packed and transported to the project location. They are assembled on-site using bolts and flanges, completing the piping network efficiently.
Focus Keywords:
piping spool fabrication process, prefabricated piping spool, piping spool welding, spool assembly
Advantages of Using Piping Spools
Prefabricated piping spools offer several advantages compared to traditional on-site fabrication. Here are some key benefits:
1. Reduced On-Site Work
Since the spools are preassembled in the workshop, the need for cutting, fitting, and welding at the site is significantly reduced. This saves valuable installation time.
2. Improved Quality Control
Fabrication in a controlled environment ensures higher quality standards, accurate dimensions, and defect-free welds.
3. Cost Savings
Prefabrication reduces labor costs, wastage, and material handling expenses. It also minimizes the need for heavy machinery at the site.
4. Enhanced Safety
Workshop fabrication is safer than on-site welding, which often involves hazardous conditions such as high temperatures, confined spaces, or elevated heights.
5. Faster Project Execution
The use of piping spools accelerates project timelines as multiple spools can be fabricated simultaneously while other site works continue in parallel.
6. Easy Maintenance and Replacement
Spools can be easily removed and replaced for repair or maintenance, making the system more flexible and easier to manage.
Focus Keywords:
advantages of piping spools, prefabricated piping system, piping spool benefits
Applications of Piping Spools
Piping spools are used across a wide range of industries where fluid or gas transport is essential. Some major application areas include:
-
Oil and Gas Industry:
Used in offshore platforms, refineries, and petrochemical plants for transporting crude oil, natural gas, and other fluids. -
Power Generation Plants:
Utilized in steam, thermal, and nuclear power plants for boiler and cooling water systems. -
Chemical Processing Units:
Ideal for conveying corrosive chemicals under high temperature and pressure conditions. -
Water Treatment Plants:
Used in pipelines carrying fresh water, wastewater, or desalinated water. -
Pharmaceutical and Food Industries:
Stainless steel piping spools ensure sanitary transport of fluids, meeting hygiene and safety standards. -
Marine and Shipbuilding:
Used in piping systems for ballast water, fuel lines, and cooling systems.
Focus Keywords:
piping spool applications, industrial piping systems, prefabricated piping spools in oil and gas
Types of Piping Spools
Depending on the design and purpose, piping spools can be categorized as follows:
-
Carbon Steel Piping Spools:
Known for strength and cost-effectiveness, suitable for high-pressure systems. -
Stainless Steel Piping Spools:
Resistant to corrosion and ideal for chemical, food, and pharmaceutical industries. -
Alloy Steel Piping Spools:
Used in high-temperature and high-pressure environments like refineries. -
Duplex and Super Duplex Spools:
Provide excellent resistance to pitting and stress corrosion cracking. -
Nickel Alloy Piping Spools:
Suitable for extreme chemical environments and marine applications.
Focus Keywords:
stainless steel piping spools, carbon steel piping spools, alloy steel spools
Standards and Codes for Piping Spool Fabrication
The fabrication of piping spools must comply with international standards to ensure safety, reliability, and compatibility. Some commonly followed standards include:
-
ASME B31.3 – Process Piping
-
ASME B16.5 – Flanges and Fittings
-
ASTM Standards – Material Grades and Testing
-
API Standards – Oil and Gas Industry Requirements
-
ISO Standards – International Quality and Testing Guidelines
These standards govern the design, materials, welding, testing, and documentation for piping spool fabrication.
Focus Keywords:
piping spool standards, ASME B31.3 piping spools, API spool fabrication
Why Choose Prefabricated Piping Spools?
Prefabricated spools are gaining popularity due to their efficiency, quality, and reduced project costs. Manufacturers design and assemble spools in specialized facilities equipped with automated welding, CNC cutting, and digital inspection tools.
This results in superior dimensional accuracy and consistency across batches. Additionally, prefabricated spools minimize site work, making them ideal for complex projects with tight deadlines.
Focus Keywords:
prefabricated piping spool, piping spool manufacturer, prefabricated piping fabrication
Choosing the Right Piping Spool Manufacturer
When selecting a piping spool manufacturer, consider the following factors:
-
Experience and Expertise: Look for companies with proven experience in handling diverse materials and standards.
-
Quality Assurance: Ensure the manufacturer follows NDT testing, hydrotesting, and dimensional inspections.
-
Certifications: Verify compliance with ISO, ASME, and API standards.
-
Customization: Choose a supplier that can fabricate spools according to specific project requirements.
-
Delivery Time: Timely delivery is essential for maintaining project schedules.
A reliable manufacturer ensures that the piping spools meet design, safety, and performance expectations.
Focus Keywords:
piping spool manufacturer, piping spool supplier, custom piping spools
Conclusion
Piping spools play a vital role in modern industrial projects by improving efficiency, safety, and quality. Prefabricated in controlled environments, these spools simplify on-site installation, reduce costs, and ensure consistent performance across complex piping networks.
